Features

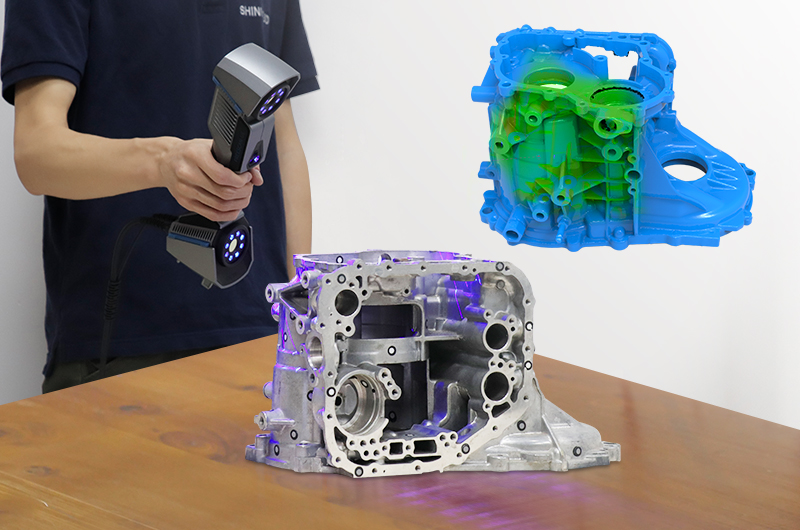

Metrology-class high accuracy
Accuracy up to 0.02mm, Volumetric accuracy 0.02mm+0.04mm/m.
Stability of repetitive measurement
When measuring the same workpiece repeatedly, FreeScan UE delivers consistent results, proving stability and reliability.

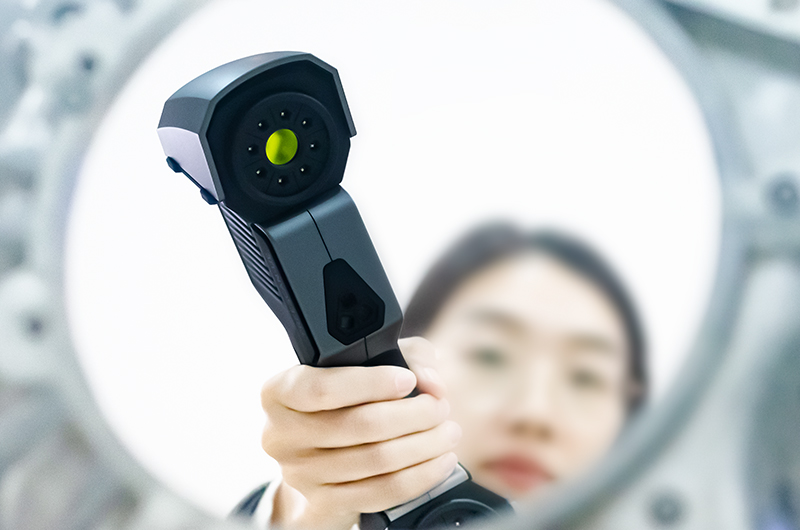

Portable and lightweighted
The device weights only 750g, facilitating handheld scanning more easily and avoiding fatigue due to long working time.

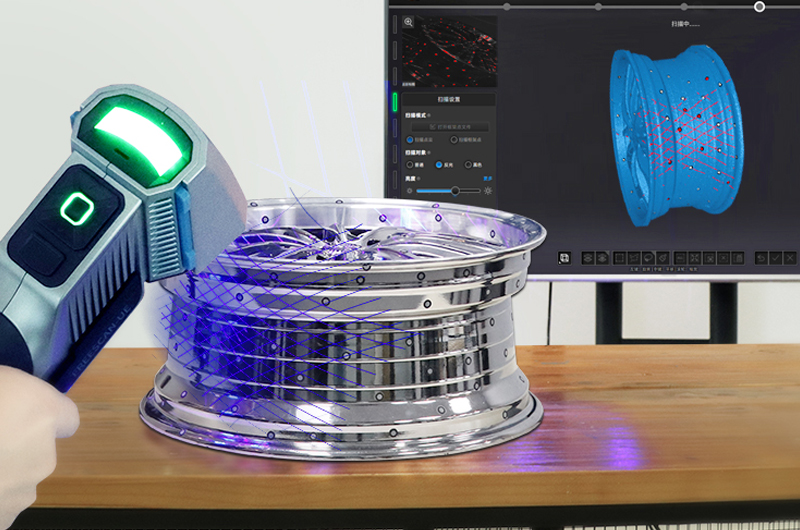

Wide range of material adaptations
Supporting the scan of black and reflective surfaces to accommodate a wider range of scanning applications.
High efficiency
The scan area can reach 510*520mm, providing larger field of view for a smoother and more efficient scanning experience.

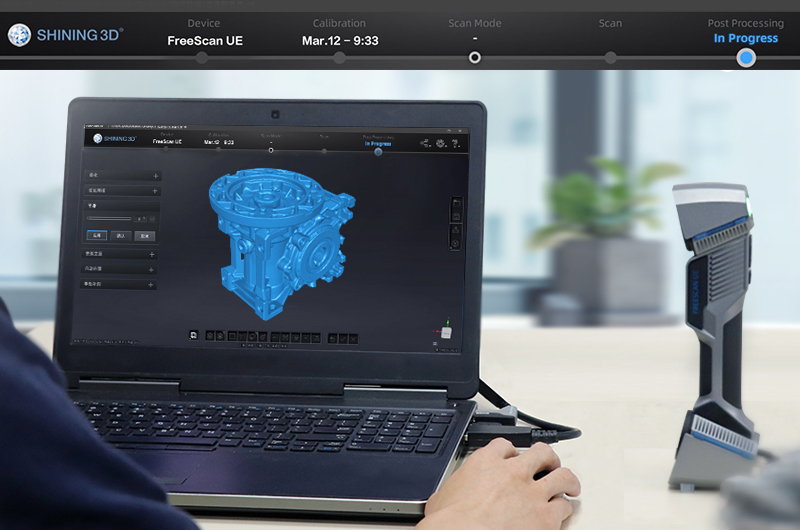

Easy operation
User-friendly operating system with simple software setup and guidance through the whole workflow process, allowing users to master the operation at ease.
Seamless docking to inspection software
The scan data can be imported into inspection softwares like Geomagic Control X, Verisurf Inspect with one click, increasing the inspection efficiency.
Specification
Scan Mode
Multiple Lines Scan, Single Line Scan
Scan Speed
650,000 points/s (UE7); 1,020,000
points/s (UE11)
Max. Scan Range
510mm*520mm
Light Category
Class Ⅱ (eye safe)
Weight
750g
Working Moisture
10-90%
Maximun 0.02mm
Working Distance
500mm
Spacial Distance between Points
0.05mm-3mm
Transmission Mode
USB 3.0
Powering
12V，5.0A
Certification
Volumetric Accuracy
0.02+0.04mm/m
Max. Scan Depth
300mm-700mm
Light Source
14 lines+1 line blue laser ray (UE7); 22 lines +1
line blue laser ray (UE11)
Volume
298mmx90mmx74.5mm
Working Temperature
-20℃-40℃
Recommended Computer Configuration
System：Win10，64位；Grafic Card：NVIDIA
Series，GTX1080 and higher；GPU Memory：
≥4G；Processor：I7-8700；Memory：≥32GB
Note*
Volumetric accuracy is the relationship between the accuracy of the 3D data and the size of the object, with a reduction in accuracy of 0.04 mm per 100 cm. the standard above is determined by measuring the sphere centre distance by splicing the marker points.
